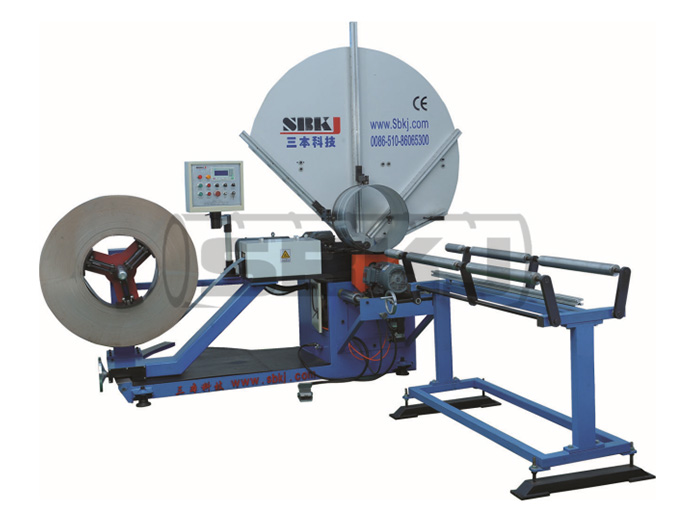

Special Tube Former SBTF-1500 Quick Detail: SBTF-1500 uses steel strip molds and saw blades for cutting, which is relatively inexpensive.The quality of the spiral tube manufactured at 1500 is also excellent, but it requires certain debugging skills from the operators Description: The mainframe and decoiler of SBTF-1602B are integrated. SBTF-1500 uses steel strip molds, which are relatively inexpensive.It should be noted that 1500 can only be cut with a saw blade, and plasma cutting cannot be added temporarily. The maximum specification of the spiral air duct produced in SBTF-1500 is only 1500mm. The thickness of galvanized sheet can reach 1.2mm, while stainless steel can reach 0.8mm Parameter:

Technical Data
Diameter	φ80-1500mm
Thickness	Galvanized Steel  0.4-1.2mm Stainless Steel   0.4-0.8mm
Width	137mm
Lock Seam	Outside lock， inside lock as request.
Power	Mainframe     5.5 Kw Cutting Power 4 Kw
Cutting System	Saw Blade Cutting
Weight	1708Kg
Dimension	3400mm×2070mm×2720mm
