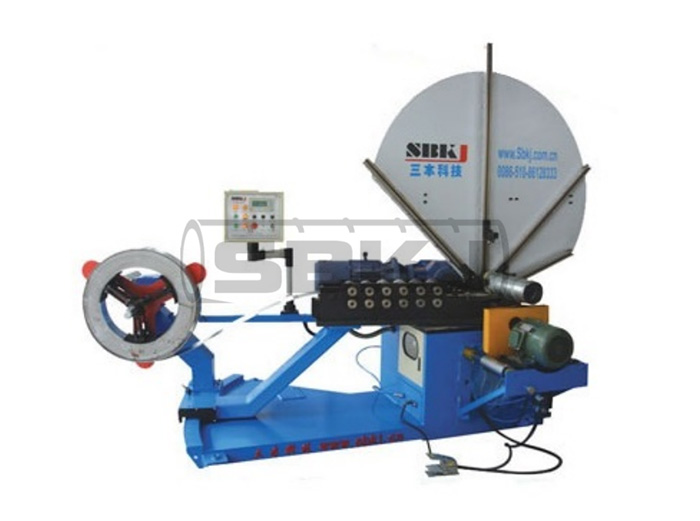

Special Tube Former SBTF-1500C Quick Detail: SBTF-1500C is an upgrade to SBTF-1500. The thickness of galvanized sheet that can be produced at SBTF-1500C reaches 2.0mm, while that of stainless steel reaches 1.2mm. It is worth noting that 1500C can be equipped with plasma cutting. Description: SBTF-1500C has two additional sets of forming rollers compared to SBTF-1500, which is the main reason for the increase in production thickness.The SBTF1500 series uses steel strip molds and requires workers to adjust their skills, which is relative to SBTF-1602 and SBTF-2020. After the workers have adjusted the equipment for the first time, the subsequent spiral tube production does not require too much manpower and material resources. Parameter:

Technical Data
Diameter	φ100-1500mm
Thickness	Galvanized Steel  0.4-2.0mm Stainless Steel   0.4-1.2mm
Width	Standard 137mm
Lock Seam	Outside lock,inside lock as request.
Power	Mainframe     11 Kw Cutting Power 4 Kw
Cutting System	Plasma Cutting，Saw Blade Cutting
Weight	2300Kg
Dimension	3800mm×2160mm×2720mm
