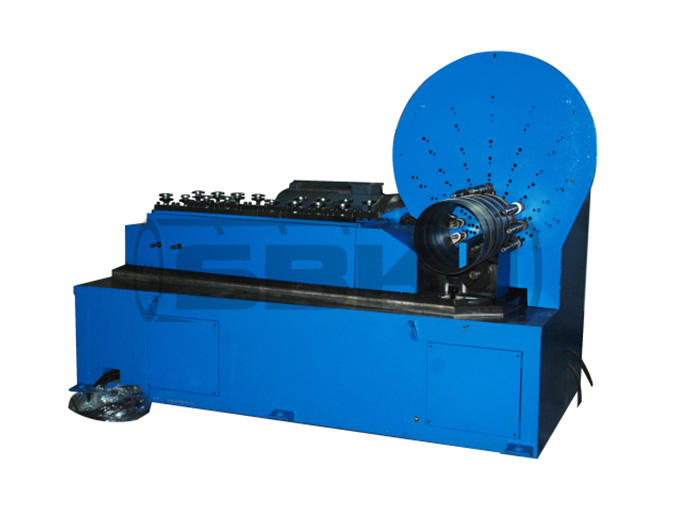

Special Steel Forming Machine SBMK-2-1502 Quick Detail: Spiral Steel Forming Machine SBMK-2-1502 is a specialized gas conveying pipeline machinery for coal mines.SBMK-2-1502 is specialized in producing thick spiral pipes（3mm）. Description: Spiral Steel Forming Machine SBMK-2-1502 is a specialized gas conveying pipeline machinery for coal mines. Unlike other spiral air duct products, the standard processing plate width of 1502 is 198mm, the thickness of the galvanized plate that can be processed is 3.0mm, and the thickness of stainless steel is 2.0mm Parameter:

Technical Data
Diameter	323-1200mm
Thickness	Stainless Steel      2.0mm Cold Rolled Steel    3.0mm
Width	198mm
Power	45Kw
Dimension	3100mm×1500mm×1200mm(Mainframe)
Weight	6500kg
Voltage	380V/50HZ/3PH
