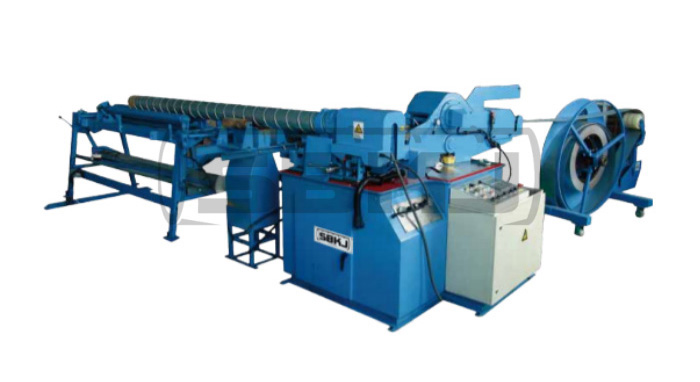

Special Tube Former SBTF-2020 Quick Detail: Spiral Tubeformer, also known as spiral seam thin-walled pipe, is a machine used to produce spiral air ducts.SBTF-2020 can produce spiral pipes with a maximum diameter of 2500mm. Description: Spiral Tubeformer SBTF-2020 is a machine that produces spiral ducts.Just set the quantity and length of the product, and the equipment can automatically complete the production, cutting, and unloading of the spiral tube.This machine will cut pipes into preset lengths and the required number of pieces using a cutter or plasma.The cutting blade enjoyed has the characteristics of no noise, no heat sparks generated by the cutting edge, and no tilting of the cutting edge.The equipment can produce spiral tubes with diameters that meet the requirements of DIN, BS, Euroorm, and Smacna standards Parameter:

Technical Data
Diameter	φ80-2500mm
Thickness	Galvanized steel  0.4-2.0mm Stainless steel  0.4-1.2mm Aluminum    0.4-2.0mm
Width	Standard 137mm   0.4-1.0mm Standard 140mm   1.1-1.3mm Standard 150mm   1.4-2.0mm
Cutting System	Plasma cut and flying slitter
Power	22kw
Weight	3200kg
Dimension	2100mm×1800mm×1500mm(Mainframe) 2000mm×1100mm×1300mm(Decoiler) 2450mm×1200mm×1200mm(Run-out table)
Voltage	380V/50HZ/3PH
