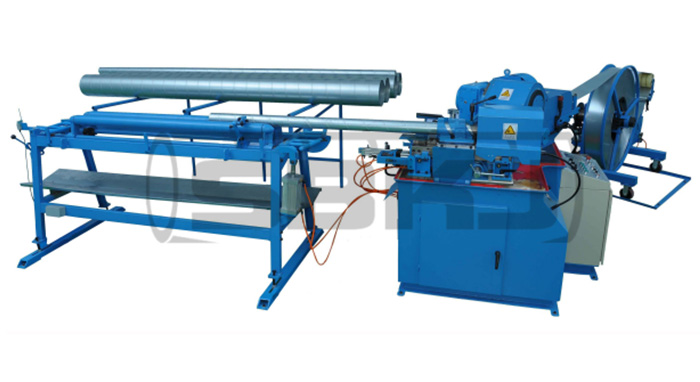

Special Tube Former SBTF-1602 Quick Detail: Spiral Tubeformer, also known as spiral seam thin-walled pipe, is a machine used to produce spiral air ducts. SBTF-1602 can produce spiral pipes with a maximum diameter of 1600mm. Description: The maximum specification of the spiral air duct produced in SBTF-1602 is only 1600. However, the quality of the product is the same as SBTF-2020 and can meet the standards of DIN, BS, Euroorm, and Smacna. This machine will cut pipes into preset lengths and the required number of pieces using a cutter or plasma.The cutting blade enjoyed has the characteristics of no noise, no heat sparks generated by the cutting edge, and no tilting of the cutting edge. Parameter:

Technical Data
Diameter	φ80-1600mm
Thickness	Galvanised Steel  0.4-1.3mm Stainless steel  0.4-0.8mm Aluminium    0.4-1.3mm Other profiles on request.
Width	Standard 137mm   0.4-1.0mm Standard 140mm   1.1-1.3mm Other profiles on request.
Corrugations	Either one or two beads.（Optional）
Lockseam	Outside lock, inside lock as request.
Cutting System	The patented flying slitter.
Options	Atutomatic length control system. Controlled corrugation unit, flange slitter
Power	Mainframe        11KW Cooling water pump    0.25KW
