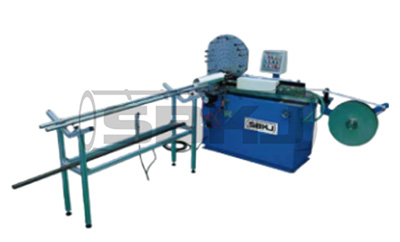

Aluminum Duct Forming Machine SBLF-500 Quick Detail: Aluminum foil air ducts are mainly used as ventilation ducts in the final air supply stage of fresh air systems. Description: The aluminum foil duct is made of stretched pure aluminum foil, which is continuously and tightly clamped through a spiral. Due to the oxidizing nature of aluminum material, a layer of glue is usually applied during production to isolate the aluminum material from oxidizing with oxygen in the air.The SBLF-500 has a maximum diameter of 500mm and uses a fixed template. When changing the production size, it does not require too much labor and time to debug. The equipment is compact and exquisite. Parameter:

Technical Date
Diameter	80-500mm
Thickness	0.08-0.15mm
Width	60mm
Corrugated	4,5,7 Order  6 Standard
Feeding Speed	0-46m/min
Lock Form	Double-decked tabby locking/ Twill
Power	2kW
Weight	260Kg
Dimension	2210mm×830mm×1530mm(Mainframe)
Voltage	380V/50HZ/3PH
