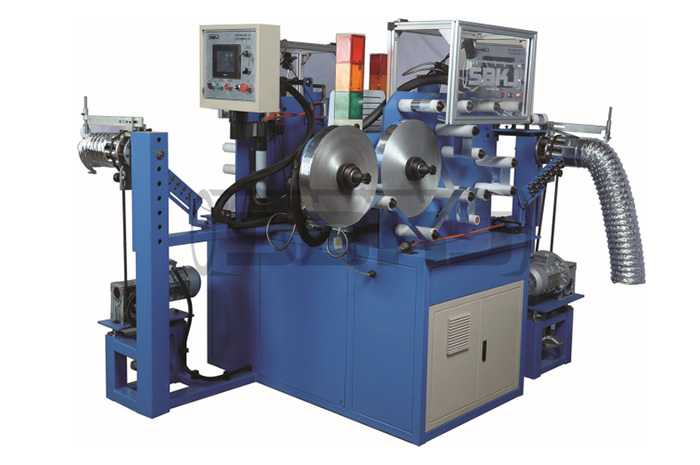

Aluminum Flexible Duct Forming Machine SBLR-600 Quick Detail: Aluminum foil hoses can be used at the ventilation end to provide noise reduction and shock absorption. Description: SBLR-600 is divided into two types: dual station and single station, both of which can be used for double-layer aluminum foil tubes. This device uses solid hot melt adhesive, which has high water resistance and high viscosity even in humid environments. At room temperature, the viscosity of solid hot melt adhesive is greater than that of other adhesives, so the produced aluminum foil hoses are not easily damaged.The equipment can be equipped with automatic tube shrinking equipment, making product packaging more convenient. Parameter:

Technical Data
Diameter	80-600mm
Material	Non-woven Fabric, PVC Film, Aluminum Foil
Thickness	0.02-0.08mm
Width	φ80mm       35mm
	Φ100mm       30-35mm
	Φ125mm       30-35mm
	Φ300-600mm   35-40mm
Feeding Speed	65m/min
Cutting System	Automatic
Power	7kW
Weight	680Kg
Dimension	2000mm×1500mm×1800mm(Mainframe)
Voltage	380V/50HZ/3PH
