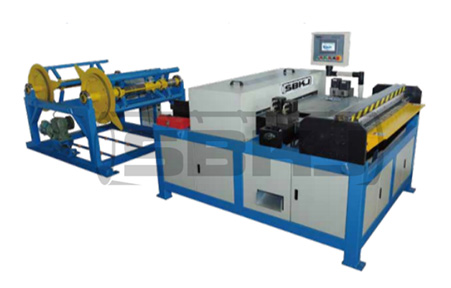

Auto Duct Line SBAL-Ⅲ Quick Detail: SBAL-Ⅲ is able to product 1000² of rectangular ducts in 8 hours.This equipment subtracts the common plate flange Description: SBAL-Ⅲ consists of two electrical feeding consists of two electrical feeding metal is controlled by frames, leveler grooving roller, hydraulic notch and square punching machines, hydraulic shearer and folder. The electrical control system uses a computer with a closed-loop servo-system to increase the precision and reliability of the line. The maximum working speeding is 18/min. The length tolerance is ±0.5mm. The diagonal line tolerance is ±0.8mm. Parameter:

Technical Data
Model	SBAL-Ⅲ-1250	SBAL-Ⅲ-1550
Thickness	0.5-2.0mm	0.5-2.0mm
Max.width(standard)	1250mm	1550mm
Max.Feeding speed	18m/min	18m/min
Max.weight capacity	8000Kg	8000Kg
Power	10.7kW	10.7kW
Weight	3250Kg	4000Kg
Mainframe	2300×1800×1400mm	2300×2100×1400mm
Decoiler	2300×1750×1650mm	2300×2050×1650mm
Voltage	380V/50HZ/3PH
