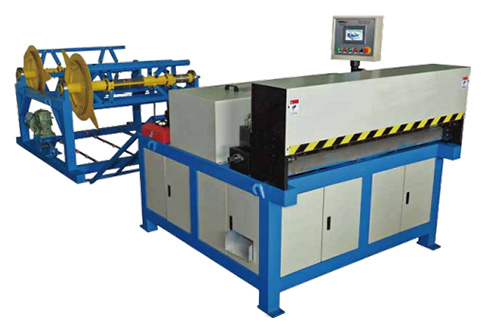

Auto Duct Line SBAL-Ⅱ Quick Detail: There is no hydraulic shearer and folder in SBAL-II, so the final step of square tube forming requires manual labor to complete. Description: SBAL-Ⅱ consists of two electrical feeding consists of two electrical feeding metal is controlled by frames, leveler grooving roller, hydraulic notch and square punching machines.The electrical control system uses a computer with a closed-loop servo-system to increase the precision and reliability of the line. The maximum working speeding is 18/min. The length tolerance is ±0.5mm. The diagonal line tolerance is ±0.8mm. Parameter:

Technical Data
Model	SBAL-Ⅱ-1250	SBAL-Ⅱ-1550
Thickness	0.5-2.0mm	0.5-2.0mm
Max.width(standard)	1250mm	1550mm
Max.Feeding speed	18m/min	18m/min
Max.weight capacity	8000Kg	8000Kg
Power	9.2kW	9.2kW
Weight	3000Kg	3500Kg
Mainframe	1900×1800×1400mm	1900×2100×1400mm
Decoiler	2300×1750×1650mm	2300×2050×1650mm
Voltage	380V/50HZ/3PH
