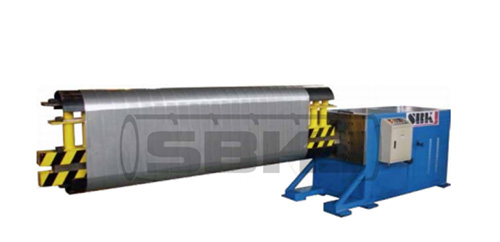

Ovalizer SBHF-3100 Quick Detail: SBHF-3100 uses prefabricated circular tubes and expanded them into elliptic tubes through tension. Description: The device uses Delta's electronic control system, which has high accuracy and can accurately shape the required dimensions. We have corresponding molds for different specification requirements. The tension surface roughness of the bracket is 0.8, so there is basically no wear or heating phenomenon. In the product manual, we have calculated the required specifications for prefabricated round pipes for you. Parameter:

Technical Data
Thickness	0.4-1.2mm
Max.Duct Length	3100mm
Arm Range	Min. Diameter 330mm
Die Specification	Φ150，φ200，φ250，φ300，φ350，φ400，φ450，φ500
Tray Specification	50,100,200,300,400,500,600mm
Power	18.5kW
Weight	2720Kg
Dimension	5630×1250×1130mm
Voltage	380V/50HZ/3PH
