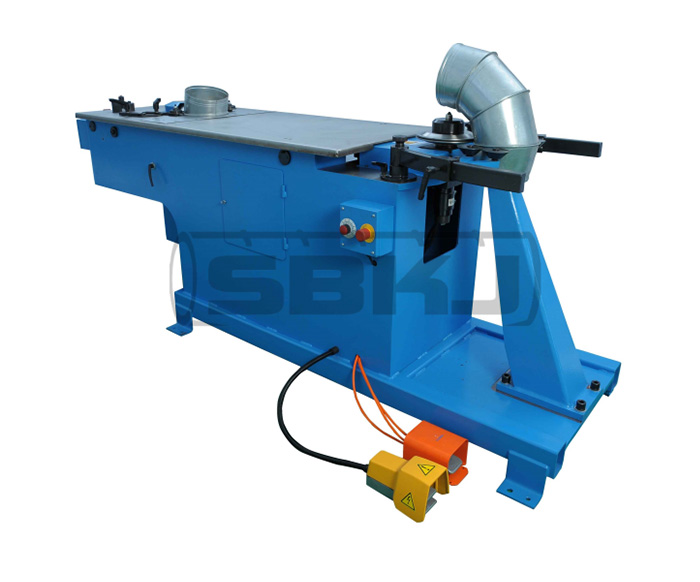

Gore Locker SBEM-1250 Quick Detail: SBEM-1250 is mainly used for the production of elbows.The equipment is driven by hydraulic pressure Description: It is a specialized equipment for processing metal thin plates, circular pipes, and butt biting on circles. According to the different processing capabilities and ranges, the equipment adopts two independent transmission systems, and each set of rollers can be operated separately; Two people can complete the molding and sewing processes simultaneously. Traditional manufacturing processes require manual adjustment and molding multiple times, and SBKJ has developed a new one click molding function. Parameter:

Technical Data
Power	4kW+120W(Cooling fan)
Hydraulic	70L
Consumption of compressed air	75L/h 6bar
Max.forming speed	120m/min
Diameter	100-1250mm
Material Thickness	Black steel           0.4-1.5mm
	Galvanized steel      0.4-1.5mm
	Stainless steel        0.4-1.2mm
	Aluminum           0.4-1.5mm
Flange size	5mm,7.5mm,10mm
Weight	750Kg
Dimension	2650mm×800mm×1000mm
Voltage	380V/50Hz/3PH
