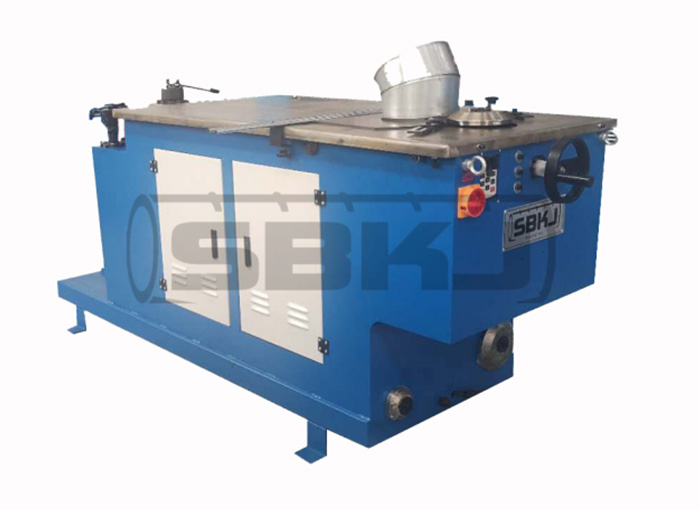

Because SBWT is driven by an electric motor, its price is only half that of hydraulic. At present, SBWT cannot be equipped with a one click molding function and can only be adjusted by the skills of the workers. But the operating techniques of SBWT are easy to master. There are four models of SBWT to choose from for different customer needs.This equipment is also suitable for insulation engineering, and the convex drum processing of longitudinal and circumferential lap joints of metal protective shells makes the joints of metal protective shells tight and the waterproof effect reliable. Parameter:
|
Technical Data |
||||
|
Model |
SBWT-1000A |
SBWT-1500A |
SBWT-1000D |
SBWT-1500D |
|
Thickness |
Galvanized steel 0.4-1.2mm |
Galvanized steel 0.4-1.5mm |
Galvanized steel 0.4-1.2mm |
Galvanized steel 0.4-1.5mm |
|
Diameter |
Φ120-φ1000 |
Φ120-φ1500 |
Φ120-φ1000 |
Φ120-φ1500 |
|
Max.forming speed |
75r/min |
75r/min |
75r/min |
75r/min |
|
Power |
1.5kW×2+2.2kW |
2.2kW×2+4kW |
1.5kW×2+2.2kW |
2.2kW×2+4kW |
|
Weight |
600Kg |
660Kg |
600Kg |
660Kg |
|
Dimension |
2080×700×895mm |
2450×700×895mm |
2080×700×895mm |
2450×700×895mm |
SBKJ's research and development is the comerstone for our automatic tubeformers that produce a higher qualty duct with reduced production costs.
