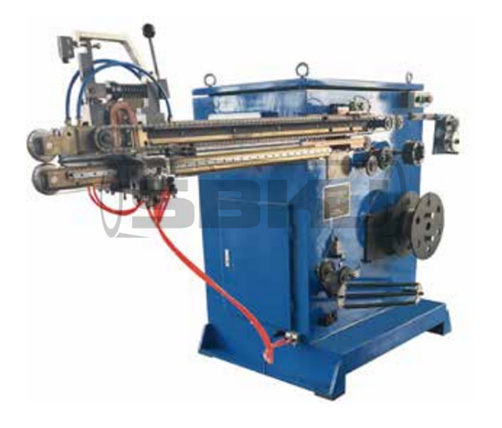

Stitch Welder SBSW-30-2Z Quick Detail: SBSW-30-2Z is a new type of welding machine designed by our company for the can making and ventilation pipeline industry. Due to the use of advanced microcomputer control technology, its performance is more stable and operation is simpler Description: By improving the structural form of traditional semiautomatic welding machine,SBSW-30-2Z can increase the rate of transporting cans and keep the higher production.The equipment adopts the double wires technology, preventing the pollution of middle electrodes effectively, securing the quality of welding line and the beautiful appearance.Using Mitsubishi programmable controller as its controlling centre and Delta converter to adjust the main drive speed, all electronic components and devices being burn-in screened, the machine has a long life and stable capability. The intelligent acousto-optic call can warn the operator directly on faults which lessens the checking time and decreases the complexity of maintenance and operation. Parameter:

Technical Data
Diameter	Φ100-φ1000mm
Length	50-1000mm
Overlap	6mm
Thickness	0.4-1.2mm
Welding Speed	2m/min
Copper Diameter	Φ2.0
Power	40kW
Weight	850Kg
Dimension	2300×800×1300mm
Voltage	380V/50HZ/3PH
