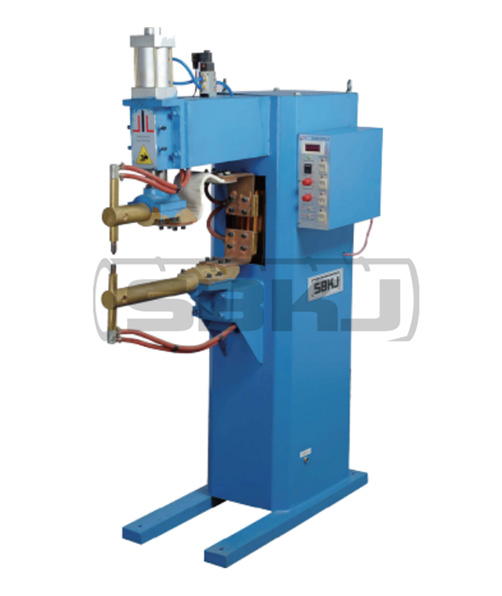

Spot Welder SBDN Quick Detail: SBDN is a semi-automatic welding machine with a cheap price.This device can only be spot welded Description: The equipment system supports the storage and retrieval of 9 welding parameters. The device has three functional options: constant voltage, constant current, and constant power. The equipment operation is simple and convenient. After setting the parameters, lightly press the foot switch, and the welding head will automatically descend for welding. Parameter:

Technical Data
Model	SBDN-40
Input Voltage	380V
Input Capacity	40kVA
Rated load cycle	12%
Welding thickness	1.2mm+1.2mm
Max. Pressure of electrode	393N
Electrode journey	60mm
Weight	236Kg
Dimension	1100×550×1700mm
Voltage	380V/50HZ/3PH
